SXL-16
SXL16
$141.99
/ 1000 FT
- Approx LBS/MFT: 12.70
- AWG Size: 16
- Chrysler Spec: MS-5919
- Cond. Material: Bare Copper
- Conductor Stranding: 19/29
- Copper LBS/MFT: 7.4
- Ford Spec: M1L-85A
- Insul. Material: Cross-Linked Polyethylene (XLPE)
- Max. Temp: 125C
- Min. Temp: -51C
- No. of Cond.: 1
- No. of Strands: 19
- Nom. Insul. Thick. (in): 0.030
- Nom. O.D. (in): 0.1180
- SAE Spec: SAE J-1128
- Strand Size: 29

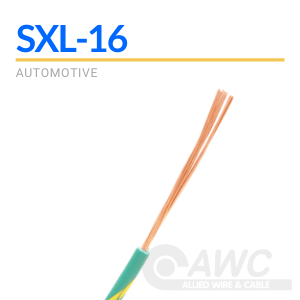

SXL-16 16 Gauge SXL Automotive Primary Wire
Our SXL-16 16 gauge cable is part of our Automotive Wire & Battery Cable line of Wire & Cable. SXL-16 is composed of a 19/29 stranded Bare Copper conductor with Cross-Linked Polyethylene (XLPE) insulation material. These cables have a recommended temperature range of -51°C to 125°C and weigh approximately 12.70 lbs/MFT. Since SXL wire can handle high heat, it is rated SAE J-1128 to be used in engine compartments and also meets the specifications of Ford and Chrysler products.
