DLO-8

DLO-8
$1,099.99 / 1000 FT
DLO-8
  • Amps: 80
  • Approx LBS/MFT: 105.00
  • AWG Size: 8
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 37/.0211
  • CSA Type: RW90
  • Insul. Material: Ethylene Propylene Rubber (EPR)
  • Jacket Material: Chlorinated Polyethylene (CPE)
  • Jacket Thickness: 0.030
  • Max. Temp: 90C
  • Min. Temp: -40C
  • No. of Strands: 37
  • Nom. Insul. Thick. (in): 0.065
  • Nom. O.D. (in): 0.3363 +/- 5%
  • Strand Size: 0.0211
  • UL Style: RHH/RHW
  • Voltage: 2000

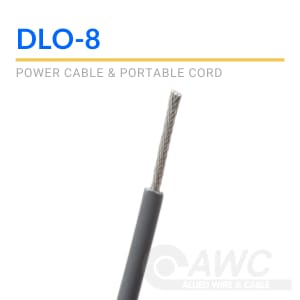

DLO-8 - 8 Gauge Diesel Locomotive Cable

Order the DLO-8 8 AWG cable, a reliable choice in our Power Cable and Portable Cord line. This cable features 37-stranded tinned copper conductors, EPDM insulation, and a black CPE jacket, with a maximum temperature of 90C and a 2000V rating. Its jacket resists oils, acids, alkalies, heat, flame, and continuous wet/dry exposure. Approved for diesel-electric locomotives, oil and gas drilling rigs, and more, its also RoHS compliant. Get this durable DLO cable from Allied Wire & Cable for your heavy-duty applications!
