EZ-1200-78EIA-RA-2
EZ-1200-78EIA-RA-2
$0.00
/
- Approx LBS/MFT: 1800.00
- Connector Type: Right Angle
- Contact Attach (Inner): Spring Finger
- Contact Attach (Outer): Clamp
- Finish of Body: Alballoy
- Finish of Pin: Silver
- Interface: 7/8 EIA
- Length (in): 3.1
- VSWR Freq. (GHz): <1.15:1 (0.5)
- Weight per piece (lbs): 1.800
- Width (in): 3.07

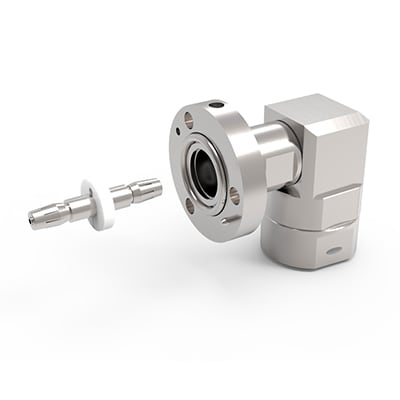

EZ-1200-78EIA-RA-2 LMR 1200 Connectors - Coax
Our EZ-1200-78EIA-RA-2 is part of our Connectors and Termination line for Coax Cables. Manufactured by Times Microwave, these connectors have a 7/8 EIA interface with a silver right angle and an alballoy outer finish. The inner contact is connected by a spring finger while a clamp holds the outer contact in place. Weighing approximately 1.8 lbs per piece, these connectors are 3.1 in. long and 3.07 in. wide. A short jumper cable is recommended for any transition to interfaces smaller than Type N.
