EZ-240-1023M
EZ-240-1023M
$0.00
/
- Approx LBS/MFT: 14.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Spring Finger
- Contact Attach (Outer): Crimp
- Coupling Nut: Knurl
- Finish of Body: Nickel
- Finish of Pin: Gold
- Interface: 1.0/2.3 DIN
- Length (in): 1.1
- VSWR Freq. (GHz): <1.35:1 (2.5)
- Weight per piece (lbs): 0.014
- Width (in): 0.33

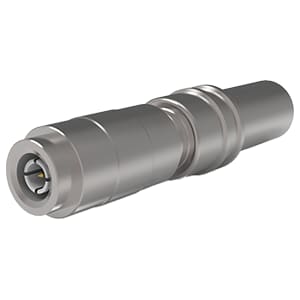

EZ-240-1023M-LMR 240 Connectors
Our EZ-240-1023M connectors are part of our Connectors and Termination line for Coaxial Cables. The EZ-240-1023M connector has a straight plug with 1.0/2.3 DIN interface, a gold finish on the pin, and a nickel finish on the body. The coupling nut is a knurl and the outer contact attach is a crimp.
