TC-240-MUHF
TC-240-MUHF
$0.00
/
- Approx LBS/MFT: 14.00
- Connector Type: Straight Plug
- Contact Attach (Inner): Solder
- Contact Attach (Outer): Crimp
- Coupling Nut: Knurl
- Finish of Body: Nickel
- Finish of Pin: Gold
- Interface: Mini-UHF
- Length (in): 1.1
- VSWR Freq. (GHz): <1.25:1 (2.5)
- Weight per piece (lbs): 0.014
- Width (in): 0.45
TC-240-MUHF-LMR 240 Connectors

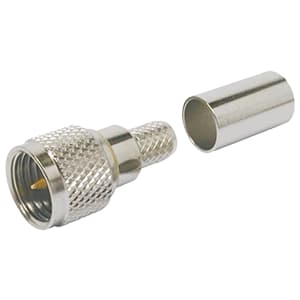

TC-240-MUHF connectors are part of our Connectors and Termination line for Coaxial Cables. The TC-240-MUHF connector has a straight plug with Mini-UHF interface, a gold finish on the pin, and a nickel finish on the body. The coupling nut is a knurl and the outer contact attach is a crimp.
