TXL-16

TXL 16 19
$120.99 / 1000 FT
TXL-16
  • Approx LBS/MFT: 9.40
  • AWG Size: 16
  • Chrysler Spec: MS-8288
  • Cond. Material: Bare Copper
  • Conductor Stranding: 19/29
  • Copper LBS/MFT: 7.4
  • Ford Spec: M1L-123A
  • Insul. Material: Cross-Linked Polyethylene (XLPE)
  • Max. Temp: 125C
  • Min. Temp: -51C
  • No. of Cond.: 1
  • No. of Strands: 19
  • Nom. Insul. Thick. (in): 0.016
  • Nom. O.D. (in): 0.0890
  • SAE Spec: SAE J-1128
  • Strand Size: 29

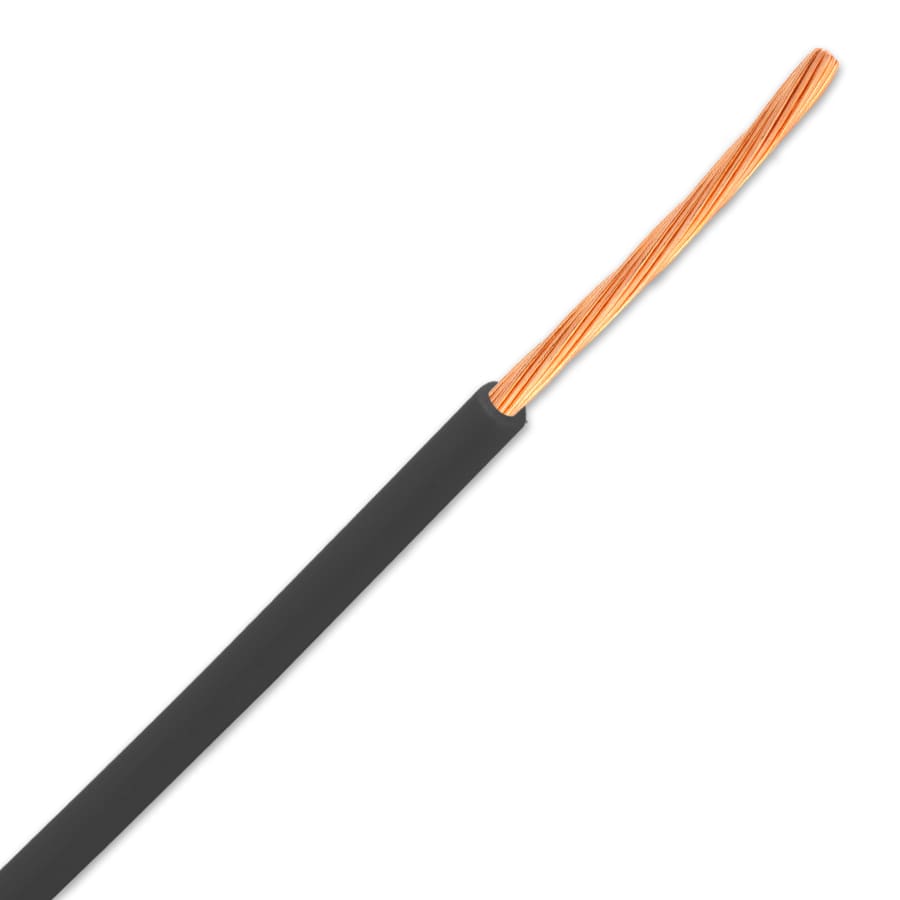

TXL-16 16 Gauge TXL Automotive Primary Wire

Our TXL-16 16 gauge cable is part of our Automotive Wire & Battery Cable line of Wire & Cable. TXL-16 is composed of a 19/29 stranded bare copper conductor with cross-linked polyethylene (XLPE) insulation material. These cables are rated for a voltage of 50 volts, have a recommended temperature range of -51°C to 125°C, and weigh approximately 9.4 lbs/MFT. TXL cable may be used in automotive applications where small diameter and minimal weight are desirable and have specifications for both Ford and Chrysler products.
