M23053/15-102

M23053/15-102
$0.00 / 1000 FT
M23053/15-102
  • CSA Type: 198
  • Dielectric Strength: 500 V/mil
  • Expanded I.D. (in): 1.1, 1.100
  • Material: Adhesive Lined Irradiated Polyolefin (PO)
  • Max. Long. Shrinkage: -10%
  • Max. Temp: 90C
  • Max. Tensile Strength: 2100 psi
  • Mil-Spec: M23053/15
  • Min. Temp: -55C
  • Nom. Rec. Wall Thick. (in): 0.12, 0.120
  • Recovered I.D. (in): 0.375
  • Shrink Ratio: 3:1
  • Shrink Temp: 121C
  • Size (in): 1
  • Specific Gravity: 1.1, 1.10
  • UL Style: 224
  • Ultimate Elongation: 250%
  • Volume Resistivity: 1016 Ohm-cm

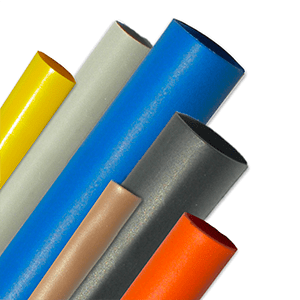

M23053/15-102 - 3:1 Heavy Wall SR-PO Heat Shrink Tubing

Our M23053/15-102 heat shrink tubing is part of our line of tubing and harnessing products. The M23053/15-102 tubing is made from adhesive lined Semi-Rigid Polyolefin, has a heavy wall, and has a shrinkage ratio of 3:1 at +121°C. It has an operating temperature of 55°C to +90°C and a longitudinal shrinkage of ten percent maximum. This tubing is RoHS compliant, UL recognized, and meets the MIL-DTL-23053/15, CL 1 Mil-Spec.

Color
