UL 1015

UL 1015 Lead Wire Characteristics

What type of gauge and conductor configurations does UL 1015 hook-up wire have?

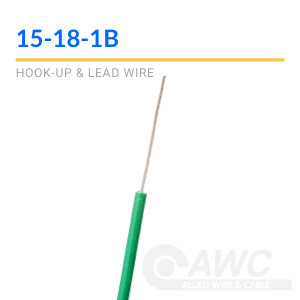

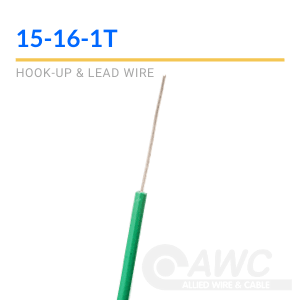

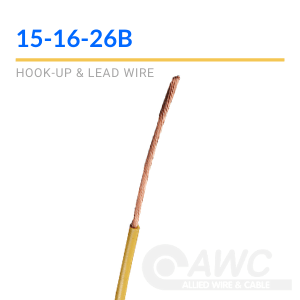

AWC offers UL 1015 lead wire in a range of sizes from 26 American Wire Gauge up to 10 AWG. It's available in solid and stranded options. You can specify UL 1015 hook-up wire with bare (B) or tinned (T) copper conductors, as indicated on the part number.

What type of insulation does UL 1015 wire have?

The wire insulation is extruded thermoplastic PVC. The minimum insulation thickness is 30 mils (0.030 inches). PVC insulation has good abrasion resistance and resists most oils, acids, and alkalis. UL 1015 PVC insulated wire has good flame-resistant properties and meets the requirements of the UL VW-1 vertical flame test.

What are common applications of UL 1015 hook-up and lead wire?

You can use UL 1015 wire for AC and DC appliance and control panel wiring. It's rated at 600 volts AC and 750 volts DC. The wire is relatively stiff due to its thicker insulation, especially when specified with a solid conductor. The wire's good temperature rating allows its use indoors and outdoors, and you can use this wire in oil at up to 80 C.

Dual Rated Wires

Several UL 1015 wires have dual UL ratings. These include UL 1230, UL 1032, and Machine Tool Wire (MTW). Note that certain specifications differ, and it's essential to select the correct wire when working to UL standards.

UL 1230 Wire

UL 1230 hook-up wires have similar ratings to UL 1015 wires. Their maximum voltage is 600 volts with the same maximum rated temperature of 105 C. The primary difference is that you can use UL 1230 wires in wet conditions, or in oil, to a maximum temperature of 60 C.

UL 1032

UL 1032 hook-up wire has a lower maximum temperature of 90 C. You can use UL 1032 wire for the internal wiring of appliances and electrical control panels. The wire has a top-rated voltage of 1,000 volts AC and 1,200 volts DC. When used for electronic use, the wire tag may indicate a maximum peak voltage of 3,500 volts.

MTW

Machine tool wire is a category of wire recognized in the National Electrical Code. MTW wire has a dry temperature rating of 90 C and a wet location temperature rating of 60 C. The wire has a maximum voltage rating of 600 volts.

UL 1015 Wire Specifications

• Conductors: Solid and stranded bare copper or tinned copper wire
• Insulation: Extruded PVC with a minimum thickness of 30 mils
• Voltage rating: 600 volts AC, 750 volts DC
• AWG size permitted by UL 1015: 30 AWG to 2,000 MCM
• Maximum temperature rating dry: 105 C
• Maximum temperature rating in oil: Optional 60 C or 80 C
• Minimum temperature rating: Minus 40 C
• Flame resistant: Yes

UL 1015 Wire Certifications

• UL 1015
• CSA Type TEW is rated for 600 volts and 105 C
• UL VW-1 Flame Test
• 16 AWG to 10 AWG only: Marine BC-5W2 and UL 1426
• Restriction of Hazardous Substances (RoHS)-compliant
