XHHW-250
XHHW 250MCM
$0.00
/ 1000 FT
- Amps: 290
- Approx LBS/MFT: 844.00
- AWG Size: 250
- Cond. Material: Bare Copper
- Conductor Stranding: 37/.0822
- Insul. Material: Cross-Linked Polyethylene (XLPE)
- Max. Temp: 90C
- No. of Strands: 37
- Nom. Insul. Thick. (in): 0.065
- Nom. O.D. (in): 0.7200
- Strand Size: 0.0822
- UL Style: XHHW-2/44
- Voltage: 600

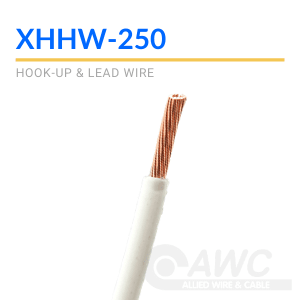

XHHW-250 250 MCM XHHW Wire - Copper Conductor
Our XHHW-250 250 MCM wire is part of our Hook Up Wire / Lead Wire line. XHHW-250 is a 250 MCM wire made of a bare copper conductor with an XLPE insulation and a conductor stranding of 37/.0822. Weighing approximately 844 lbs/MFT, these wires have a voltage rating of 600 volts and a temperature rating of 90°C. The standard color of XHHW wire is black and it can be used for general purpose wiring, for power distribution and branch circuit wiring, where a cable having superior flame retardance is required.
