XHHW 300 35 AL
XHHW 300MCM AL
$0.00
/ 1000 FT
- Approx LBS/MFT: 349.00
- AWG Size: 300
- Cond. Material: Aluminum Alloy
- Conductor Stranding: 35
- Insul. Material: Cross-Linked Polyethylene (XLPE)
- Max. Temp: 90C
- No. of Cond.: 1
- Nom. Insul. Thick. (in): 0.065
- Nom. O.D. (in): 0.7030
- UL Style: XHHW-2
- Voltage: 600

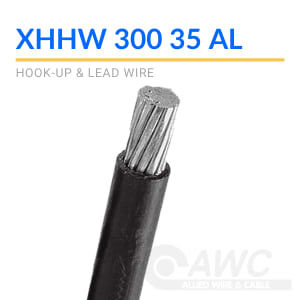

XHHW 300 35 AL 300 MCM XHHW Aluminum Wire
Our XHHW 300 35 AL 300 MCM wire is part of our Hook Up Wire / Lead Wire line. XHHW 300 35 AL is a 300 MCM wire with a stranded aluminum alloy conductor and black XLPE insulation. Weighing approximately 349 lbs/MFT, these wires have a conductor stranding of 35 and a nominal outer diameter of 0.703 XHHW Wire is approved for use in conduit or raceways for circuit wiring in accordance with the NEC. These wires are abrasion, heat, and moisture resistant, have a voltage rating of 600 volts, and a temperature rating of 90°C.
