XHHW 3/0 18 AL

XHHW 3/0 18 AL
$0.00 / 1000 FT
XHHW 3/0 18 AL
  • Approx LBS/MFT: 200.00
  • AWG Size: 3/0
  • Cond. Material: Aluminum Alloy
  • Conductor Stranding: 18
  • Insul. Material: Cross-Linked Polyethylene (XLPE)
  • Max. Temp: 90C
  • No. of Cond.: 1
  • No. of Strands: 18
  • Nom. Insul. Thick. (in): 0.055
  • Nom. O.D. (in): 0.5360
  • UL Style: XHHW-2
  • Voltage: 600

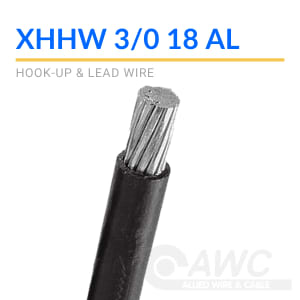

XHHW 3/0 18 AL 3/0 Gauge XHHW Aluminum Wire

Discover the XHHW 3/0 18 AL 3/0 gauge wire, a durable option in our Hook Up Wire / Lead Wire line. This 3/0 AWG wire features a stranded aluminum alloy conductor with black XLPE insulation, weighing 200 lbs/MFT. With a conductor stranding of 18 and a nominal outer diameter of 0.536 inches, it's approved for conduit or raceways per NEC standards. Abrasion, heat, and moisture resistant, it's rated at 600 volts and 90C. Order this reliable XHHW wire from Allied Wire & Cable for your circuit wiring projects!

Color
