XHHW-6
XHHW 6 7
$0.00
/ 1000 FT
- Amps: 75
- Approx LBS/MFT: 97.00
- AWG Size: 6
- Cond. Material: Bare Copper
- Conductor Stranding: 7/.0612
- Insul. Material: Cross-Linked Polyethylene (XLPE)
- Max. Temp: 90C
- No. of Strands: 7
- Nom. Insul. Thick. (in): 0.045
- Nom. O.D. (in): 0.2800
- Strand Size: 0.0612
- UL Style: XHHW-2/44
- Voltage: 600

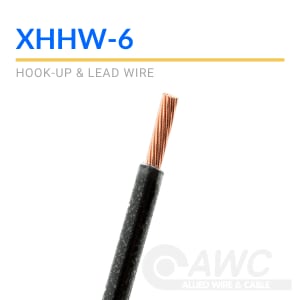

XHHW-6 6 Gauge XHHW Wire - Copper Conductor
Our XHHW-6 6 gauge wire is part of our Hook Up Wire / Lead Wire line. XHHW-6 is a 6 awg wire made of a bare copper conductor with an XLPE insulation and a conductor stranding of 7/.0612. Weighing approximately 97 lbs/MFT, these wires have a voltage rating of 600 volts and a temperature rating of 90°C. The standard color of XHHW wire is black and it can be used for general purpose wiring, for power distribution and branch circuit wiring, where a cable having superior flame retardance is required.
