XHHW-750

XHHW 750MCM
$0.00 / 1000 FT
XHHW 750MCM
  • Amps: 535
  • Approx LBS/MFT: 2460.00
  • AWG Size: 750
  • Cond. Material: Bare Copper
  • Conductor Stranding: 61/.1109
  • Insul. Material: Cross-Linked Polyethylene (XLPE)
  • Max. Temp: 90C
  • No. of Strands: 61
  • Nom. Insul. Thick. (in): 0.080
  • Nom. O.D. (in): 1.1700
  • Strand Size: 0.1109
  • UL Style: XHHW-2/44
  • Voltage: 600

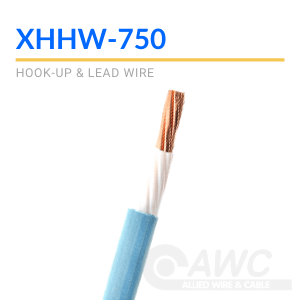

XHHW-750 750 MCM XHHW Wire - Copper Conductor

Our XHHW-750 750 MCM wire is part of our Hook Up Wire / Lead Wire line. XHHW-750 is a 750 MCM wire made of a bare copper conductor with an XLPE insulation and a conductor stranding of 61/.1109. Weighing approximately 2460 lbs/MFT, these wires have a voltage rating of 600 volts and a temperature rating of 90°C. The standard color of XHHW wire is black and it can be used for general purpose wiring, for power distribution and branch circuit wiring, where a cable having superior flame retardance is required.

Color
