XHHW 750 58 AL
XHHW 750MCM AL
$0.00
/ 1000 FT
- Approx LBS/MFT: 833.00
- AWG Size: 750
- Cond. Material: Aluminum Alloy
- Conductor Stranding: 58
- Insul. Material: Cross-Linked Polyethylene (XLPE)
- Max. Temp: 90C
- No. of Cond.: 1
- Nom. Insul. Thick. (in): 0.080
- Nom. O.D. (in): 1.0710
- UL Style: XHHW-2
- Voltage: 600

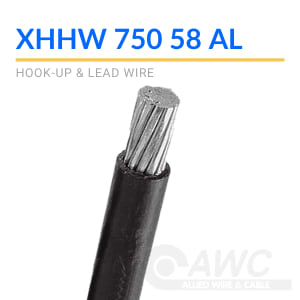

XHHW 750 58 AL 750 MCM XHHW Aluminum Wire
Our XHHW 750 58 AL 750 MCM wire is part of our Hook Up Wire / Lead Wire line. XHHW 750 58 AL is a 750 MCM wire with a stranded aluminum alloy conductor and black XLPE insulation. Weighing approximately 833 lbs/MFT, these wires have a conductor stranding of 58 and a nominal outer diameter of 1.071 XHHW Wire is approved for use in conduit or raceways for circuit wiring in accordance with the NEC. These wires are abrasion, heat, and moisture resistant, have a voltage rating of 600 volts, and a temperature rating of 90°C.
