M22759/11-14

M22759/11-14
$706.99 / 1000 FT
M22759/11-14
  • Approx LBS/MFT: 15
  • AWG Size: 14
  • Cond. Material: Silver-Coated Copper
  • Conductor Stranding: 19/27
  • Insul. Material: Polytetrafluoroethylene (PTFE)
  • M27500 Component: RC
  • Max O.D. (in): 0.092
  • Max. Temp: 200C
  • Mil-Spec: M22759/11
  • Min O.D. (in): 0.088
  • Min. Temp: -55C
  • No. of Cond.: 1
  • No. of Strands: 19
  • SAE Spec: AS22759/11
  • Strand Size: 27
  • Voltage: 600

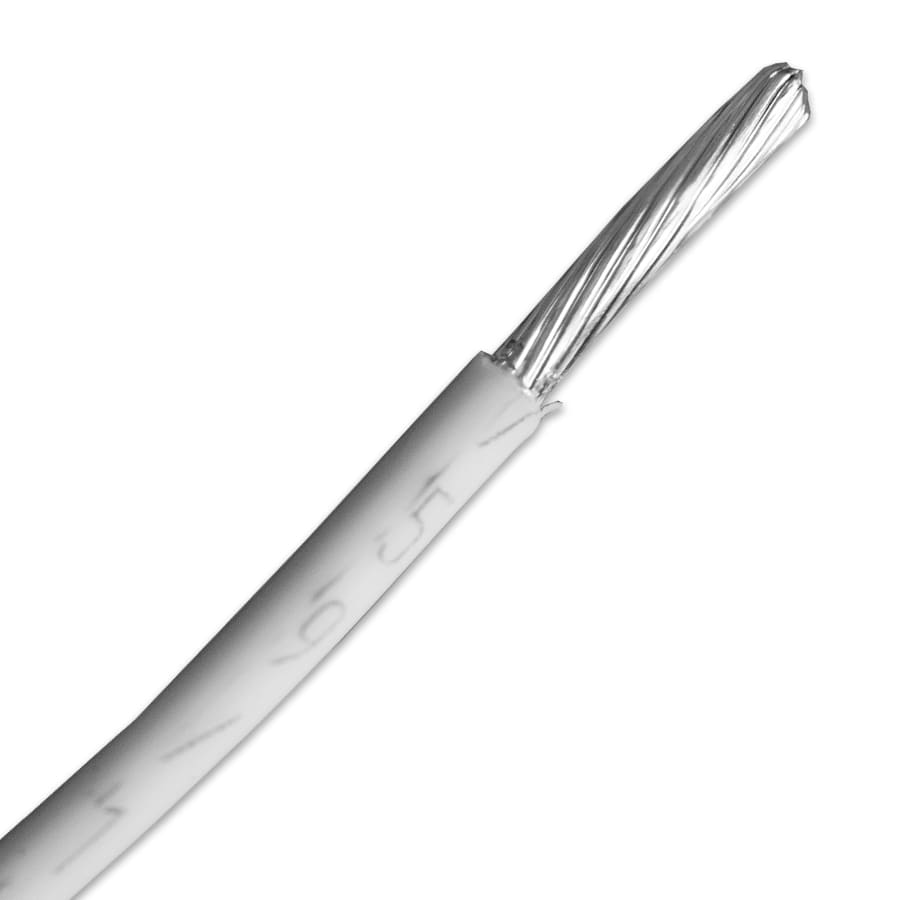

M22759/11-14 14 Gauge MIL-W-22759/11 | SAE AS22759/11 Cable

Our M22759/11-14 14 gauge cable is part of our Mil-Spec Wire and Cable line of Wire and Cable. M22759/11-14 is composed of a 19/27 stranded silver-coated copper conductor with polytetrafluoroethylene (PTFE) insulation. These cables are rated for a voltage of 600 volts, have a maximum temperature of 200°C, and weigh approximately 15 lbs/MFT. Per specification, this product will have splices. If continuous lengths are needed, please ask.
