M22759/11-16

M22759/11-16
$557.99 / 1000 FT
M22759/11-16
  • Approx LBS/MFT: 10
  • AWG Size: 16
  • Cond. Material: Silver-Coated Copper
  • Conductor Stranding: 19/29
  • Insul. Material: Polytetrafluoroethylene (PTFE)
  • M27500 Component: RC
  • Max O.D. (in): 0.077
  • Max. Temp: 200C
  • Mil-Spec: M22759/11
  • Min O.D. (in): 0.073
  • Min. Temp: -55C
  • No. of Cond.: 1
  • No. of Strands: 19
  • SAE Spec: AS22759/11
  • Strand Size: 29
  • Voltage: 600

M22759/11-16 Mil-Spec Wire

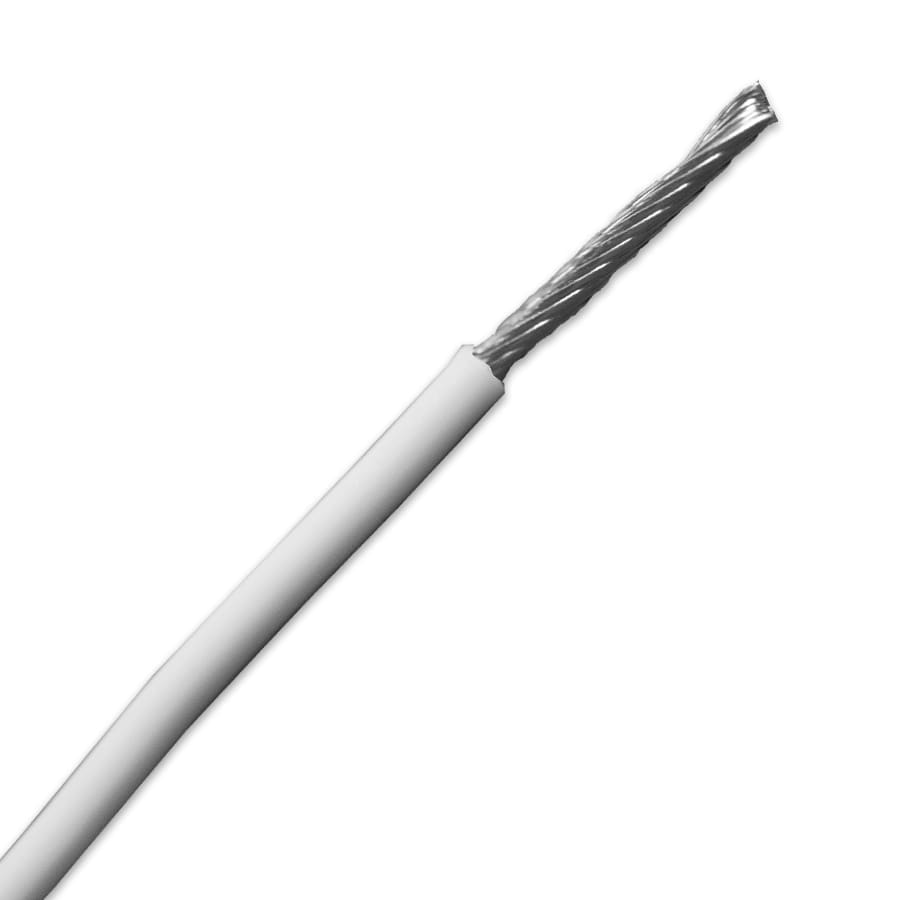

Our M22759/11-16 16 gauge cable is part of our Mil-Spec Wire and Cable line of Wire and Cable. M22759/11-16 is composed of a 19/29 stranded silver-coated copper conductor with polytetrafluoroethylene (PTFE) insulation. These cables are rated for a voltage of 600 volts, have a maximum temperature of 200°C, and weigh approximately 10 lbs/MFT. Per specification, this product will have splices. If continuous lengths are needed, please ask.
