M22759/9-20

M22759/9-20
$450.99 / 1000 FT
M22759/9-20
  • Approx LBS/MFT: 7, 7.00
  • AWG Size: 20
  • Cond. Material: Silver-Coated Copper
  • Conductor Stranding: 19/32
  • Insul. Material: Polytetrafluoroethylene (PTFE)
  • M27500 Component: LE
  • Max O.D. (in): 0.070
  • Max. Temp: 200C
  • Mil-Spec: M22759/9
  • Min O.D. (in): 0.066
  • Min. Temp: -55C
  • No. of Cond.: 1
  • No. of Strands: 19
  • Nom. Dia. of Cond.: 0.038
  • SAE Spec: AS22759/9
  • Strand Size: 32
  • Voltage: 600

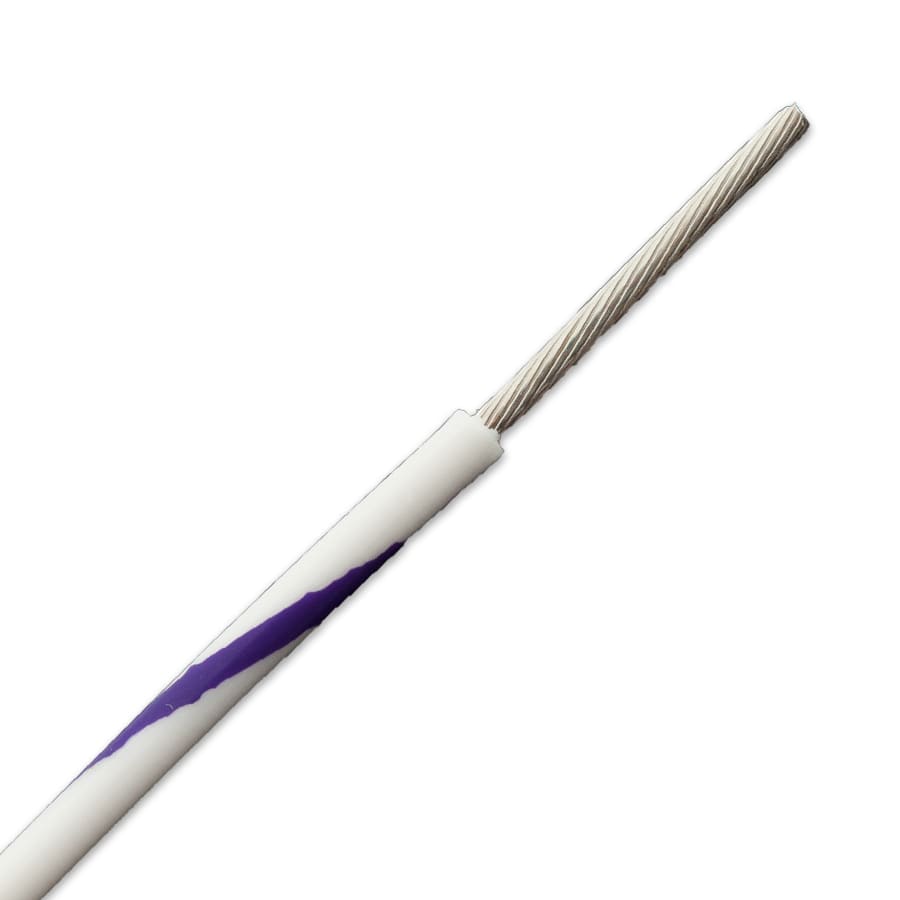

M22759/9-20 - 20 Gauge MIL-W-22759/9 | SAE AS22759/9 Cable

Our M22759/9-20 20 AWG cable is part of our Mil-Spec Wire and Cable line. M22759/9-20 is composed of a stranded silver-coated copper conductor and extruded PTFE insulation. This cable has a temperature range of -55°C to +200°C and is rated at 1000V. It is suitable for use in aerospace applications or where high temperatures, smoke emissions, and flammability might be a concern.

Color
