DLO-4

DLO-4
$0.00 / 1000 FT
DLO-4
  • Abrasion Resistance: Yes
  • Ampacity (30C): 140
  • Amps: 140
  • Approx LBS/MFT: 192, 205.00
  • AWG Size: 4
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 105/24
  • CSA Type: CSA C22.2 No. 38, CSA C22.2 No. 230, RW90
  • Diameter (in): 0.264
  • Insul. Material: Ethylene Propylene Rubber (EPR)
  • Jacket Color: Black
  • Jacket Material: Chlorinated Polyethylene (CPE)
  • Jacket Thickness: 0.030
  • Max. Temp: 90C
  • Min. Bend Radius: For Fixed: Minimum 4 x Diameter, For Flexible: Minimum 6 x Diameter
  • Min. Temp: -40C
  • NEMA Type: NEMA WC70
  • No. of Strands: 105
  • Nom. Insul. Thick. (in): 0.060, 0.065
  • Nom. O.D. (in): 0.413, 0.4503 +/-5%
  • Other Standards: RP-588, RP-586; ASTM B-8, ASTM B-33; ICEA A S-95-658; IEEE-1202; P-7268080-01-MSHA; RoHS Compliant
  • Strand Size: 24
  • UL Style: RHH/RHW, UL 44, UL 1685
  • Voltage: 2000

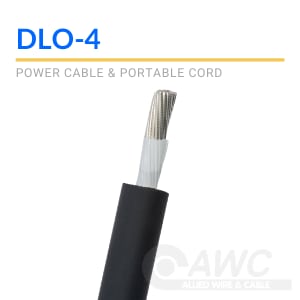

DLO-4 - 4 Gauge Diesel Locomotive Cable

Discover the DLO-4 4 AWG cable, a versatile choice in our Power Cable and Portable Cord line. This cable features 105-stranded tinned copper conductors, EPR insulation, and a black CPE jacket, with a maximum temperature of 90C and a 2000V rating. Its jacket resists oils, acids, alkalies, heat, flame, and continuous wet/dry exposure. Approved for diesel-electric locomotives, oil and gas drilling rigs, and more, its also RoHS compliant. Order this reliable DLO cable from Allied Wire & Cable for your heavy-duty applications!
