DLO-929.2
DLO-929.2
$0.00
/ 1000 FT
- Abrasion Resistance: Yes
- Ampacity (30C): 1005
- Approx LBS/MFT: 3455
- AWG Size: 929.2
- Cond. Material: Tinned Copper
- Conductor Stranding: 2300/24
- CSA Type: CSA C22.2 No. 38, CSA C22.2 No. 230
- Diameter (in): 1.208
- Insul. Material: Ethylene Propylene Rubber (EPR)
- Jacket Color: Black
- Jacket Material: Chlorinated Polyethylene (CPE)
- Jacket Thickness: 0.065
- Max. Temp: 90C
- Min. Bend Radius: For Fixed: Minimum 4 x Diameter, For Flexible: Minimum 6 x Diameter
- NEMA Type: NEMA WC70
- No. of Strands: 2300
- Nom. Insul. Thick. (in): 0.110
- Nom. O.D. (in): 1.516
- Other Standards: RP-588, RP-586; ASTM B-8, ASTM B-33; ICEA A S-95-658; IEEE-1202; P-7268080-01-MSHA; RoHS Compliant
- Strand Size: 24
- UL Style: UL 44, UL 1685
- Voltage: 2000

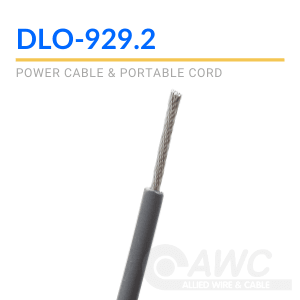

DLO-929.2 - 929.2 Circular Mil Diesel Locomotive Cable
Explore the DLO-929.2 929.2 MCM cable, a heavy-duty option in our Power Cable and Portable Cord line. This cable features 2299-stranded tinned copper conductors, EPR insulation, and a black CPE jacket, with a maximum temperature of 90C and a 2000V rating. Its jacket resists oils, acids, alkalies, heat, flame, and continuous wet/dry exposure. Approved for diesel-electric locomotives, oil and gas drilling rigs, and more, its also RoHS compliant. Shop this reliable DLO cable from Allied Wire & Cable for your industrial needs!
