SJEOOW 10/4

SJEOOW 10/4
$0.00 /
SJEOOW 10/4
  • Amps: 25
  • Approx LBS/MFT: 257
  • AWG Size: 10
  • Cond. Material: Bare Copper
  • Conductor Stranding: 104/30
  • CSA Type: SJEOOW
  • Insul. Material: Thermoplastic Elastomer (TPE)
  • Jacket Material: Thermoplastic Elastomer (TPE)
  • Max. Temp: 105C
  • Min. Temp: -50C
  • No. of Cond.: 4
  • No. of Strands: 104
  • Nom. Insul. Thick. (in): 0.045
  • Nom. O.D. of Cable (in): 0.630
  • Strand Size: 30
  • UL Style: SJEOOW
  • Voltage: 300

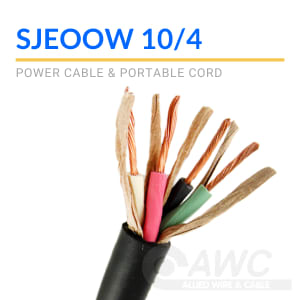

SJEOOW 10/4 Cord

Our SJEOOW 10/4 Service Cord is part of our Power Cable & Portable Cord catalog. This 10 AWG cord features four stranded bare copper conductors, TPE insulation, and a TPE jacket. SJEOOW portable power cable is suitable for use in industrial machinery, compressors, heavy duty motors, industrial control systems, and indoor/outdoor portable power. It has a voltage rating of 300V and a temperature range of -50°C to +105°C. This 10-gauge portable service cord is RoHS compliant, CSA approved and MSHA approved for mining applications.
