SJW 12/2

SJW 12/2
$0.00 / 1000 FT
SJW 12/2
  • Amps: 25
  • Approx LBS/MFT: 130.00
  • AWG Size: 12
  • Color Code Chart: 12
  • Cond. Material: Bare Copper
  • Conductor Stranding: 65/30
  • CSA Type: Approved
  • Insul. Material: Ethylene Propylene Diene Monomer Rubber (EPDM)
  • Jacket Material: Chlorinated Polyethylene (CPE)
  • Jacket Thickness: 0.045
  • Max. Temp: 90C
  • Min. Temp: -40C
  • No. of Cond.: 2
  • No. of Strands: 65
  • Nom. Insul. Thick. (in): 0.030
  • Nom. O.D. of Cable (in): 0.410
  • Strand Size: 30
  • UL Style: SJOOW
  • Voltage: 300

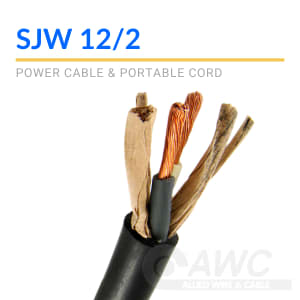

SJW 12/2 Cord

Our SJW 12/2 Service Cord is part of our Power Cable & Portable Cord catalog. This 12 AWG cord features two stranded bare copper conductors, EPDM insulation, and a CPE jacket. SJW portable power cable is ideal for temporary electrical power connections requiring flexibility. This cable is capable of heavy-duty usage and has superior flexing capabilities. It has a voltage rating of 300V and a temperature range of -40°C to +90°C. This 12-gauge portable service cord is oil, water, and weather-resistant as well as CSA approved for indoor or outdoor use.
