SJT 12/4

SJT 12/4
$0.00 / 1000 FT
SJT 12/4
  • Amps: 20
  • Approx LBS/MFT: 170.00
  • AWG Size: 12
  • Color Code Chart: 12
  • Cond. Material: Bare Copper
  • Conductor Stranding: 65/30
  • CSA Type: Approved
  • Insul. Material: Polyvinylchloride (PVC)
  • Jacket Material: Polyvinylchloride (PVC)
  • Max. Temp: 105C
  • Min. Temp: -34C
  • No. of Cond.: 4
  • No. of Strands: 65
  • Nom. Insul. Thick. (in): 0.045
  • Nom. O.D. of Cable (in): 0.475
  • Strand Size: 30
  • UL Style: SJTOOW

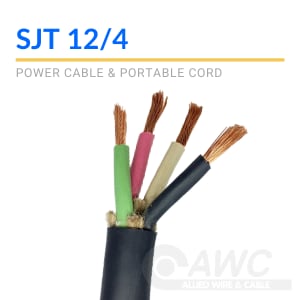

Our SJT 12/4 wire is part of our line of power cable and portable service cords. This 12 AWG, 20 AMPS, multi-conductor cable features 65/30 strands, polyvinyl chloride insulation, a PVC jacket, and an overall bare copper conductor material. It also has a temperature range of -34°C to 105°C, 0.045 nominal insulation thickness, nominal outer diameter of 0.475 inches and weighs approximately 170 lbs. This cable meets UL-style SJTOOW standards. View full product specifications and approvals in the table to the right.

An experienced AWC sales rep will contact you within 24 hours during the business week to help meet your purchasing needs.
