1101100BK003X
- Additional Ratings: IEC 60684-3-247
- Adhesive Lined: Non-Adhesive
- Expanded I.D. (in): 1.1
- Fluid Resistivity: MIL-DTL-23053/5, ISO 1817 and 37
- Max. Temp: 110C
- Min. Temp: -55C
- Nom. Rec. Wall Thick. (in): 0.095
- Recovered I.D. (in): 0.4
- Shrink Ratio: 3:1
- Voltage: 500 V/mil (20 kV/mm)
- Voltage Withstand: Dielectric Voltage Withstand (2500 V, 60 Hz, 1 min) (UL 486D)
1101100BK003X — DSG Canusa 3:1 Medium Wall Tubing

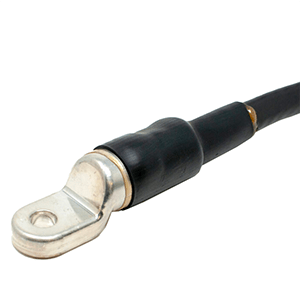

1101100BK003X from DSG Canusa is a non-adhesive heat shrink tubing designed for high-performance insulation and protection in challenging environments. With a 3:1 shrink ratio, it features an expanded I.D. of 1.1 inches and recovers to 0.4 inches, ensuring a secure and precise fit. The nominal recovered wall thickness of 0.095 inches provides durability, while its fluid resistivity meets MIL-DTL-23053/5, ISO 1817, and 37 standards, offering resistance to common fluids and solvents. Rated for temperatures from -55°C to 110°C, this tubing meets UL 486D standards, with dielectric voltage withstand of 2500 V for 1 minute. It also meets IEC 60684-3-247 specifications and has a voltage rating of 500 V/mil (20 kV/mm). Ideal for use in automotive, aerospace, and industrial sectors, this tubing provides critical protection for electrical insulation, high-temperature resistance, and fluid exposure.
