- Application: Indoor/Outdoor-Riser
- Approx LBS/MFT: 9.20
- Cond. Material: Bare Copper Clad Steel
- Conductor Stranding: solid
- Dielectric (in): 0.060
- Dielectric Material: Polyethylene (PE)
- Jacket Material: Flame-Retardant Polyethylene (FRPE)
- Max. Temp: 85C
- Min. Temp: -40C
- NEC Type: CMR
- No. of Strands: 1
- Nom. Cap. (pF/ft): 30.8
- Nom. Dia. of Cond.: 0.018
- Nom. Imp.: 50
- Nom. O.D. (in): 0.1100
- Shield: 2 Overall Shields
- Shield Material: Tinned Copper Braid/Aluminum Tape
- Vel. of Prop.: 66
- Voltage: 500

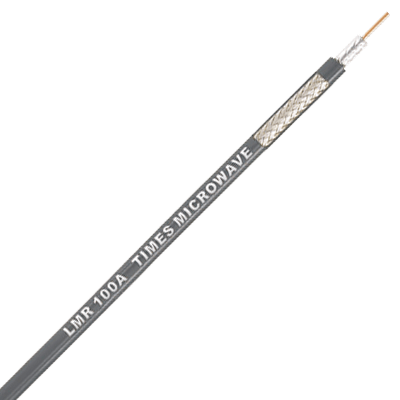

LMR-100A-FR LMR 100A / LMR 100 Cable
Our LMR-100A-FR cable is part of our Wire and Cable Coaxial Cable line. Weighing approximately 9.2 lbs/MFT, these wires are made of a solid bare copper clad steel conductor with a black flame-retardant polyethylene (FRPE) jacket, a polyethylene (PE) dielectric, and 2 overall shields of tinned copper braid/aluminum tape. These cables are rated for 500 volts and a temperature range of -40°C to 85°C. Used in indoor/outdoor-riser applications, these cables are ideal for short antenna feeder runs and jumper assemblies in wireless communications systems. LMR 100A / LMR 100 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance and the lowest loss of any flexible cable.
