- Application: Outdoor
- Approx LBS/MFT: 21.00
- Cond. Material: Bare Copper
- Conductor Stranding: solid
- Dielectric (in): 0.110
- Dielectric Material: Polyethylene (PE) Foam
- Jacket Material: Polyethylene (PE)
- Max. Temp: 85C
- Min. Temp: -40C
- No. of Strands: 1
- Nom. Cap. (pF/ft): 25.4
- Nom. Dia. of Cond.: 0.037
- Nom. Imp.: 50
- Nom. O.D. (in): 0.1950
- Shield: 2 Overall Shields
- Shield Material: Tinned Copper Braid/Aluminum Tape
- Vel. of Prop.: 80
- Voltage: 1000

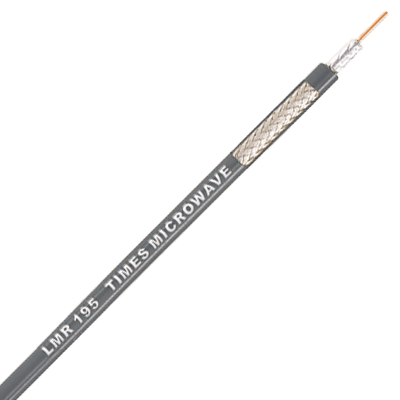

LMR-195-Flexible Low Loss Coax Cable
Our LMR-195 cable is part of our Coaxial Cable line. The LMR-195 cable's construction consists of a solid bare copper conductor, a PE foam dielectric, and a black PE jacket. This cable also features two overall shields, one made from braided tinned copper and the other from aluminum tape. It has a temperature range of -40°C to +85°C and is rated at 1000V. This cable is designed for outdoor use and is UV resistant. This LMR cable is suitable for use in jumper assemblies in wireless communications systems and short antenna feeder runs.
