M22759/32-22

M22759/32-22
$111.99 / 1000 FT
M22759/32-22
  • Approx LBS/MFT: 8, 8.00
  • AWG Size: 22
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 19/34
  • Insul. Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
  • Jacket Material: Cross-Linked Ethylene Tetrafluoroethylene (XL-ETFE)
  • M27500 Component: SB
  • Max O.D. (in): 0.045
  • Max. Resistance @ 20C OHMS/MFT: 16.2
  • Max. Temp: 150C
  • Mil-Spec: M22759/32
  • Min O.D. (in): 0.041
  • Min. Temp: -55C
  • No. of Cond.: 1
  • No. of Strands: 19
  • SAE Spec: AS22759/32
  • Strand Size: 34
  • Voltage: 600

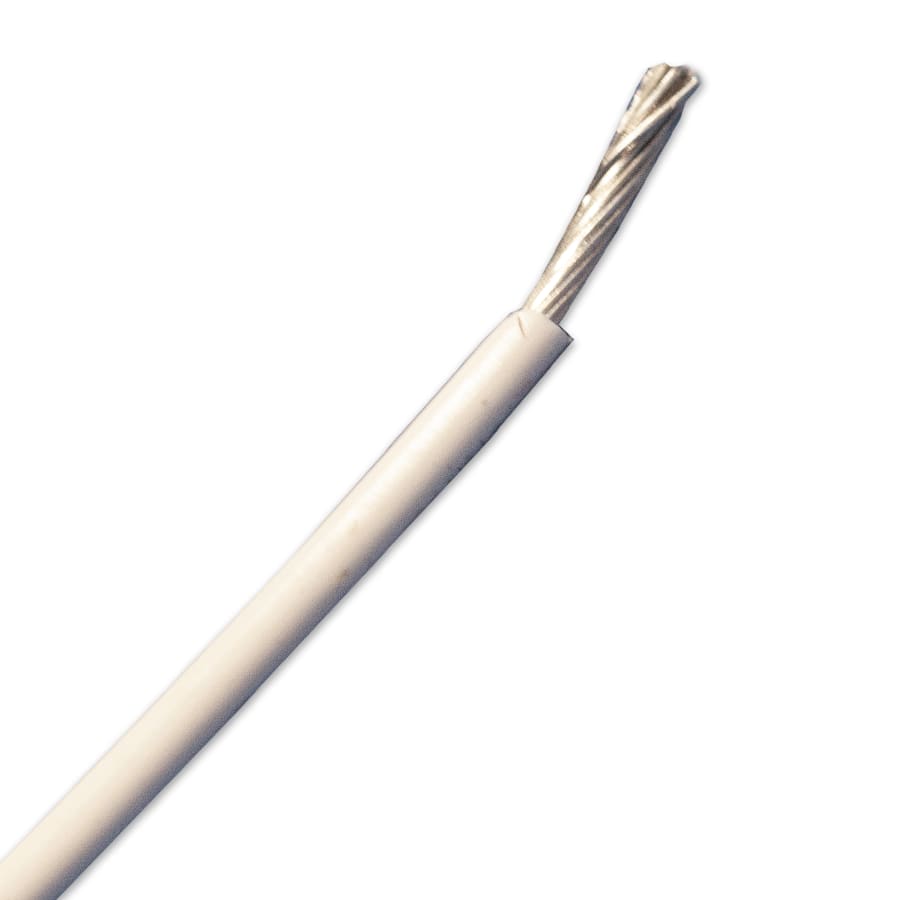

M22759/32-22 22 Gauge MIL-W-22759/32 | SAE AS22759/32 Cable

Our M22759/32-22 22 gauge cable is part of our Mil-Spec Wire & Cable line of Wire & Cable. M22759/32-22 is composed of a 19/34 stranded tinned copper conductor with cross-linked ethylene tetrafluoroethylene (XL-ETFE) insulation. These cables are rated for a voltage of 600 volts, have a maximum temperature of 150°, and weigh approximately 8 lbs/MFT.
