M22759/8-22
- Approx LBS/MFT: 6, 6.00
- AWG Size: 22
- Cond. Material: Nickel-Plated Copper
- Conductor Stranding: 19/34
- Insul. Material: Mineral Filled Polytetrafluoroethylene (PTFE)
- M27500 Component: TA
- Max O.D. (in): 0.075
- Max. Temp: 260C
- Mil-Spec: M22759/8
- Min O.D. (in): 0.071
- Min. Temp: -55C
- No. of Cond.: 1
- No. of Strands: 19
- Nom. Dia. of Cond.: 0.03, 0.030
- SAE Spec: AS22759/8
- Strand Size: 34
- Voltage: 600

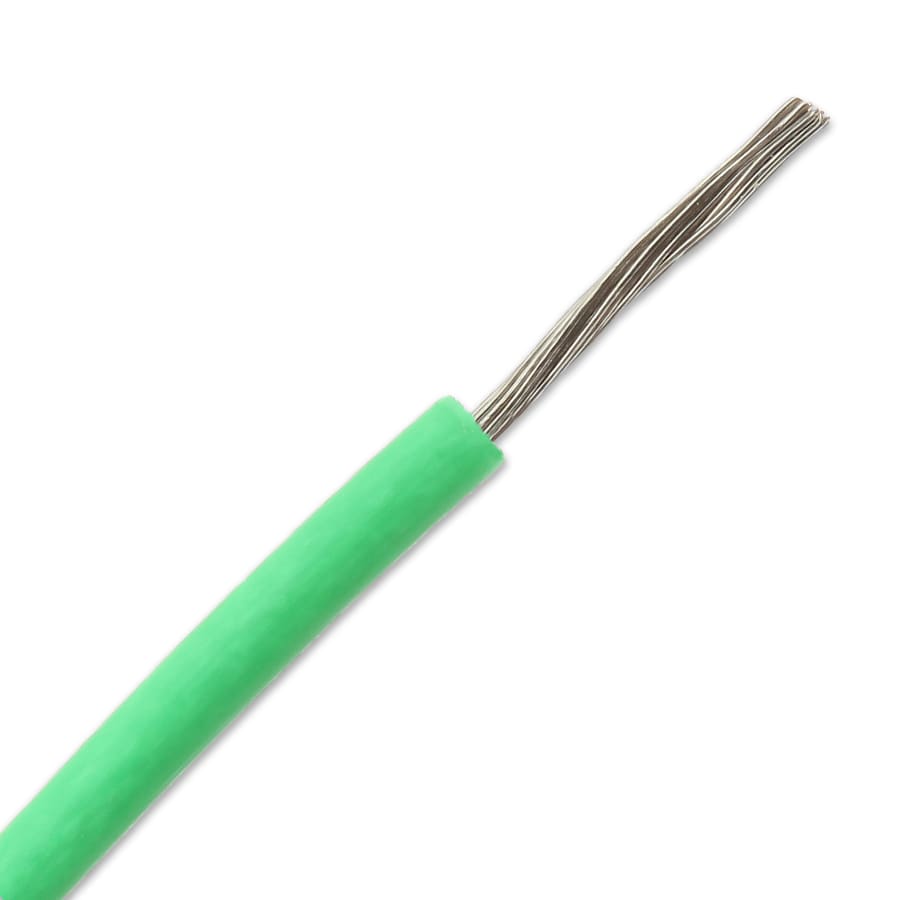

M22759/8-22 — 22 Gauge M22759/8 Mil-Spec Wire
The M22759/8-22 is a dependable wire designed for a wide range of applications, featuring a 22 AWG size with an approximate weight of 6.00 pounds per thousand feet. It is crafted with a conductor made of nickel-plated copper and a stranding configuration of 19 strands over 34. The wire is efficiently insulated with mineral-filled polytetrafluoroethylene (PTFE), ensuring exceptional thermal and electrical properties. Compliant with Mil-Spec M22759/8 and SAE Spec AS22759/8, it has a maximum outer diameter of 0.075 inches and a minimum of 0.071 inches. This wire can operate in a broad temperature range, from -55°C to 260°C, making it suitable for various demanding applications. With a voltage rating of 600, the M22759/8-22 is a versatile and robust choice for electrical and industrial settings where dependable performance is essential.
