SIS-18-1T

SIS-18-1T
$0.00 / 100 FT
SIS-18-1T
  • Approx LBS/MFT: 256.00
  • AWG Size: 18
  • Cond. Material: Tinned Copper
  • Conductor Stranding: solid
  • Insul. Material: Cross-Linked Polyethylene (XLPE)
  • Max. Temp: 90C
  • No. of Cond.: 1
  • No. of Strands: 1
  • Nom. Insul. Thick. (in): 0.030
  • Nom. O.D. (in): 0.1050
  • UL Style: 3320/3173

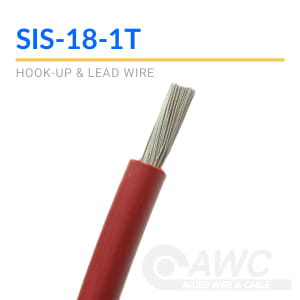

SIS-18-1T 18 Gauge SIS Cable

Our SIS-18-1T 18 gauge is part of our Hook Up Wire / Lead Wire line. SIS-18-1T is an 18 AWG wire with a soft annealed tinned copper wire with a Solid stranding and an XLPE insulation that comes in a variety of colors for identification purposes. These wires have a nominal outer diameter of 0.105 and are rated for a maximum voltage of 600 volts and a temperature of 90°. SIS cable can be used for the wiring of switchboards, panelboards, and distribution panels.

Color
