FleXnake Super-Flexible Cable, 24 AWG Twisted Pairs

Belden FleXnake 24 AWG Twisted Pair Snake Cable Specifications

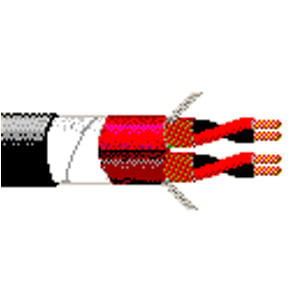

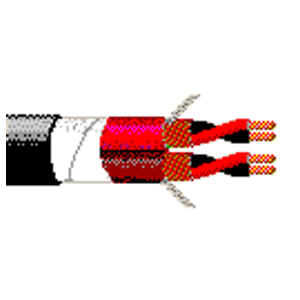

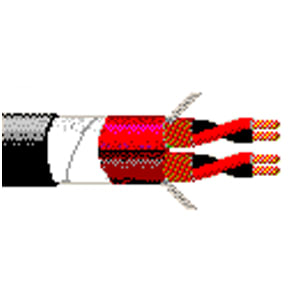

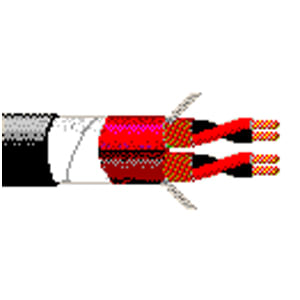

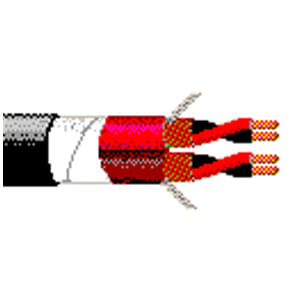

Flexnake Cable Construction:

• Conductor: Stranded Bare Copper
• Insulation: Polyolefin
• Shielding: Twisted pairs are individually shielded with double serve ‘french braid’ shields with tinned copper drain wire
• Jacketing: Pairs are individually jacketed with numbered and color-coded PVC, Overall Black PVC jacket
• Color Code: Red, Black
• Sizes Available: 24 AWG

Flexnake Cable Ratings and Approvals:

• Not NEC Rated
• Nominal OD Conductor: .023 inches
• Nominal OD Insulation: .040 inches
• Inner Pair Jacket OD: .119
• Voltage Rating: 300V RMS
• Temperature Rating: 60°C
• Nominal Impedance: 60 ohms
• Nominal Velocity of Propagation: 66%
• Nominal Capacitance:
  • Between Conductors: 26 pF/Ft
  • Between Conductor/Shield: 47 pF/Ft
