These Oxygen-Free High-Conductivity cables are suitable for use in direct burial applications. Cables with white or black jackets are also sunlight-resistant. These products are for audio use only, with the exception of some 16 AWG parts.
7 items
-
$0.00 / 1000 FT
- Approx LBS/MFT: 29
- AWG Size: 16
- Color Code Chart: See Chart
-
$0.00 / 1000 FT
- Approx LBS/MFT: 54
- AWG Size: 16
- Color Code Chart: See Chart
-
$0.00 / 1000 FT
- Approx LBS/MFT: 46
- AWG Size: 14
- Color Code Chart: See Chart
-
$0.00 / 1000 FT
- Approx LBS/MFT: 84
- AWG Size: 14
- Color Code Chart: See Chart
-
$0.00 / 1000 FT
- Approx LBS/MFT: 74
- AWG Size: 12
- Color Code Chart: See Chart
-
$0.00 / 1000 FT
- Approx LBS/MFT: 132
- AWG Size: 12
- Color Code Chart: See Chart
-
$0.00 / 1000 FT
- Approx LBS/MFT: 109
- AWG Size: 10
- Color Code Chart: See Chart

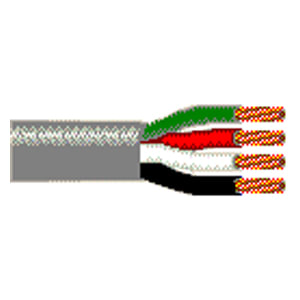

Belden Low Capacitance Oxygen-Free High-Conductivity (OFHC) Speaker Cable Specifications
OFHC Speaker Cable Construction:
- Conductor: Stranded Oxygen-Free High-Conductivity Bare Copper
- Configuration: Conductors Cabled
- Insulation: Polyolefin
- Shielding: Unshielded
- Jacket: PVC
- Jacket Color:
- 16 and 14 AWG: Available in Black, White, Green, Blue, and Grey
- 12 and 10 AWG: Available in Black, White, and Grey
OFHC Speaker Cable Ratings and Approvals:
- NEC Rating: CMR, CL3R
- CEC Rating: CMG FT4
- Temperature Range: -20°C to +75°C
