11 items
-
$0.00 / 1000 FT
- Approx LBS/MFT: 78
- AWG Size: 26
- Cond. Material: Bare Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 105
- AWG Size: 26
- Cond. Material: Bare Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 119
- AWG Size: 26
- Cond. Material: Bare Copper
-
-
$0.00 / 1000 FT
- Approx LBS/MFT: 48
- AWG Size: 25
- Cond. Material: Tinned Copper
-
-
-
$0.00 / 1000 FT
- Approx LBS/MFT: 68
- AWG Size: 25
- Cond. Material: Tinned Copper

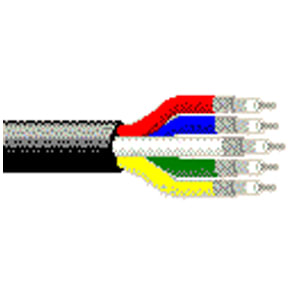

Belden CM, CMR, and CMP Rated RGB Cable Specifications
RGB Cable Construction:
- Type CM Cable:
- Conductor: 26 AWG Stranded Bare Copper
- Insulation: Foam High-Density Polyethylene (HDPE)
- Jacket: Inner PVC Jackets, Overall Black PVC Jacket
- Shielding: Duofoil (100% Coverage) and Tinned Copper Braid (93% Coverage), Overall Polyester Tape
- Type CMR Cable:
- Conductor: 25 AWG Solid Tinned Copper
- Insulation: Foam Perfluoroalkoxy (FPFA)
- Jacket: Inner PVC Jacket, Overall Black PVC Jacket
- Shielding: Duobond (100% Coverage) and Tinned Copper Interlocked Serve Shield (95% Coverage)
- Type CMP Cable:
- Conductor: 25 AWG Solid Tinned Copper
- Insulation: Foam Perfluoroalkoxy (FPFA)
- Jacket: Inner Fluorocopolymer Jacket, Overall Grey PVC Jacket
- Shielding: Duobond (100% Coverage) and Tinned Copper Interlocked Serve Shield (95% Coverage)
RGB Cable Ratings and Approvals:
- Type CM Cable (Non-Plenum Cable):
- NEC Type CM
- CEC Type CM
- UL AWM Style 1354 and 2668: 30V, 60°C
- Type CMR Cable (Riser-Rated):
- NEC Type CMR
- CEC Type CMG
- Voltage Rating: 300V RMS
- Maximum Temperature Rating: 60°C
- Type CMP Cable (Plenum-Rated):
- NEC Type CMP
- CEC Type CMP
- Voltage Rating: 300V RMS
- Temperature Rating: 60°C
