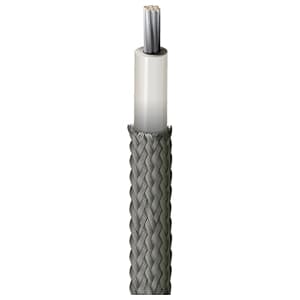

Glass Braid Silicone - 600V, 150°C

This Belden glass braid silicone hook-up wire has clean and easy stripping. The glass braid offers abrasion-resistance and is has lacquer to prevent fraying. These hook-up wires are suitable for use in Class 130(B), Class 155(F) or Class 180(H) insulation systems. Belden Cable manufactures glass braid hook-up wire for use in a variety of high-temperature applications. These cables are ideal for motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices.

5 items

30820
Belden Cable
30820
Approx LBS/MFT10
AWG Size20
Cond. MaterialTinned Copper
Conductor Stranding10/30
CSA TypeSEWF-2
Insul. MaterialSilicone Rubber/Glass Braid
Max. Temp150C
No. of Strands10
Requires Quote per FT
30818
Belden Cable
30818
Approx LBS/MFT20
AWG Size18
Cond. MaterialTinned Copper
Conductor Stranding16/30
CSA TypeSEWF-2
Insul. MaterialSilicone Rubber/Glass Braid
Max. Temp150C
No. of Strands16
Requires Quote
30816
Belden Cable
30816
Approx LBS/MFT18
AWG Size16
Cond. MaterialTinned Copper
Conductor Stranding26/30
CSA TypeSEWF-2
Insul. MaterialSilicone Rubber/Glass Braid
Max. Temp150C
No. of Strands26
Requires Quote per FT
30814
Belden Cable
30814
Approx LBS/MFT24
AWG Size14
Cond. MaterialTinned Copper
Conductor Stranding41/30
CSA TypeSEWF-2
Insul. MaterialSilicone Rubber/Glass Braid
Max. Temp150C
No. of Strands41
Requires Quote per FT
30810
Belden Cable
30810
Approx LBS/MFT50
AWG Size10
Cond. MaterialTinned Copper
Conductor Stranding65/28
CSA TypeSEWF-2
Insul. MaterialSilicone Rubber/Glass Braid
Max. Temp150C
No. of Strands65
Requires Quote

Belden 150°C Glass Braid Silicone Hook-Up Wire Specifications

Belden Silicone Hook-Up Wire Approvals:

  • CSA Approval: CSA Type SEW-2
  • Voltage Rating: 600V
  • Temperature Rating: 150°C
  • Flame Test: VW-1

Belden Silicone Hook-Up Wire Construction:

  • Conductor: Stranded Tinned Copper
  • Insulation: Silicone Rubber
  • Braid: Lacquered Glass Braid
