5 items

  • $0.00 / 1000 FT
    • Approx LBS/MFT: 40.00
    • AWG Size: 14
    • Color Code Chart: Black, White
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 56.00
    • AWG Size: 14
    • Color Code Chart: Black, White, Red
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 71.00
    • AWG Size: 14
    • Color Code Chart: Black, White, Red, Green
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 57.00
    • AWG Size: 12
    • Color Code Chart: Black, White
    Order
    Add to List
  • $0.00 / 1000 FT
    • Approx LBS/MFT: 82.00
    • AWG Size: 12
    • Color Code Chart: Black, White, Red
    Order
    Add to List

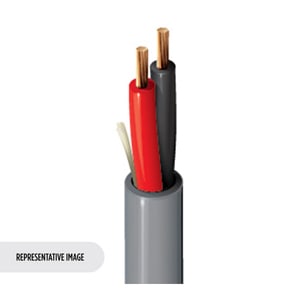

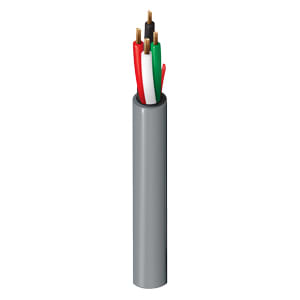

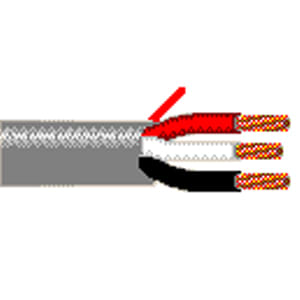

Belden Multi-Conductor Unshielded CL3R Security Cable Specifications

CL3R Cable Construction:

  • Conductor: Stranded Bare Copper
  • Insulation: PVC
  • Jacket: PVC
  • Jacket Color: Grey
  • RipCord
  • Sequential Footage Markings Every 2 ft.

CL3R Cable Ratings and Approvals:

  • NEC Rating: CMR FPLR and CL3R (not all parts are dual-rated FPLR)
  • NEC Articles: 725 and 760
  • Voltage Rating: 300V
  • Temperature Rating: 75°C

CL3R and CMR Cable Applications:

  • Commercial Use
  • Security Systems
  • Intercom and PA Systems
  • Sound and Audio Systems
  • Power-Limited Controls
  • Single Line Telephones
  • Fire Alarm Systems (Red FPLR Dual-Rated Only)
