6 items
-
$0.00 / 1000 FT
- Approx LBS/MFT: 16
- AWG Size: 22
- Color Code Chart: Black/Red, White/Green
-
$0.00 /
- Approx LBS/MFT: 19
- AWG Size: 22
- Color Code Chart: Black/Red, White/Green
-
$0.00 /
- Approx LBS/MFT: 26
- AWG Size: 22
- Color Code Chart: Black/Red, Black/White, Black/Green
-
$0.00 /
- Approx LBS/MFT: 23
- AWG Size: 20
- Color Code Chart: Black/Red, White/Green
-
$0.00 /
- Approx LBS/MFT: 0.00
- AWG Size: 20
- Color Code Chart: Black/Red, White/Green
-
$0.00 / 1000 FT
- Approx LBS/MFT: 0.00
- AWG Size: 18
- Color Code Chart: Black/Red, White/Green

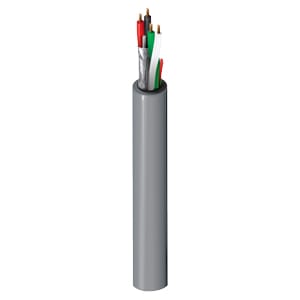

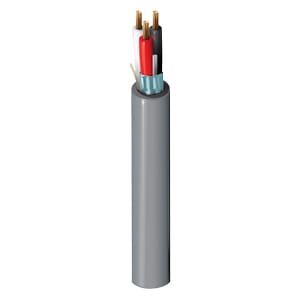

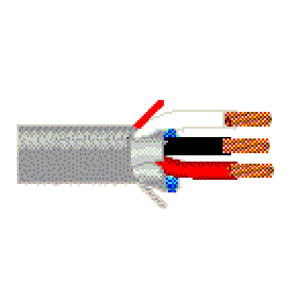

Belden CMR Alarm and Security Cable with Shielded Twisted Pairs (CMG FT4) Specifications

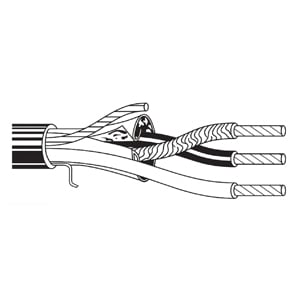

CMR CMG FT4 Cable Construction:
- Conductor: Stranded Bare Copper
- Insulation: PVC
- Configuration: Black/Red Pair Shielded with Beldfoil Tape(Aluminum Side Facing In), Cabled with Additional Insulated Conductors
- Shield: Beldfoil Tape (Aluminum Side Facing In) with Tinned Copper Drain Wire
- Jacket: PVC
- Jacket Color: Gray
- RipCord
- Sequential Footage Markings Every 2 ft.
CMR CMG FT4 Cable Ratings and Approvals:
- NEC Rating: CMR
- CEC Rating: CMG FT4
- NEC Article: 800
- Voltage Rating: 300V
- Temperature Rating: 75°C
CMR Security Cable and Alarm Cable Applications:
- Commercial Use
- Security Systems
- Intercom and PA Systems
- Sound and Audio Systems
- Power-Limited Controls
