12 items
-
$0.00 /
- Approx LBS/MFT: 11
- AWG Size: 24
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 18
- AWG Size: 24
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 11
- AWG Size: 24
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 19
- AWG Size: 24
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 15
- AWG Size: 22
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 25
- AWG Size: 22
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 32
- AWG Size: 22
- Color Code Chart: Black/White, Green/Red
-
$0.00 /
- Approx LBS/MFT: 28
- AWG Size: 22
- Color Code Chart: Black/White, Green/Red

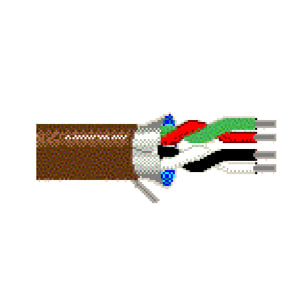

Belden CMR-Rated Thermostat and Control Cable Specifications
Thermostat and Control Cable (CMR) Construction:
- Conductor(s): Solid or Stranded Bare Copper
- Insulation: Datalene
- Configuration: Conductors Twisted into Pairs
- Shield: Overall Beldfoil (100% Coverage)
- Drain Wire: Tinned Copper
- Jacket: PVC
- Jacket Color: Brown
- Sequential Footage Markings Every 2 ft.
- Color Code: Black and White, and Green and Red
Thermostat and Control Cable (CMR) Ratings and Approvals:
- NEC Rating: CMR
- CEC Rating: CG FT4
- Voltage Rating: 300V
- Temperature Rating: 75°C
Thermostat and Control Cable (CMR) Applications:
- Thermostat Wiring
- Control Cabling
