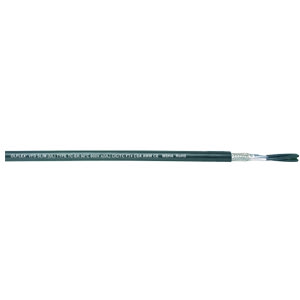

The Lapp VFD Slim Cable is suitable for use in VFD drive and motor applications. Other common applications include web presses, HVAC systems, conveyors, and other on/off or slow down/speed up applications using VFD drives and motors. This cable features "Lapp Surge Guard" insulation protection and a specially formulated, industrial-grade PVC jacket. This cable is also double shielded for extra protection and approved for TC-ER applications.
8 items
-
$0.00 / 1000 FT
- Approx LBS/MFT: 112
- AWG Size: 18
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 154
- AWG Size: 16
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 254
- AWG Size: 12
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 346
- AWG Size: 10
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 596
- AWG Size: 8
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 785
- AWG Size: 6
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 965
- AWG Size: 4
- Cond. Material: Tinned Copper
-
$0.00 / 1000 FT
- Approx LBS/MFT: 1339
- AWG Size: 2
- Cond. Material: Tinned Copper
Lapp VFD Slim Cable Specifications
VFD Slim Cable Construction:
- Conductors: Finely stranded tinned copper
- Insulation: "Lapp Surge Guard" insulation system
- Color Code: Black with white numbers, plus green/yellow ground
- Jacket: Specially formulated black PVC
- Shield: Overall Foil Tape/Braided Tinned Copper
VFD Slim Cable Ratings and Approvals:
- Temperature Range:
- UL/CSA TC: -25°C to 90°C
- For stationary use: -40°C to 105°C
- For flexible use: -25°C to 105°C
- Nominal Voltage:
- UL/CSA TC: 600V
- UL WTTC: 1000V
- UL Flexible Motor Supply: 1000V
- Minimum Bend Radius for Installation: 7.5 x cable diameter
- UL Approval:
- TC-ER per UL 1277
- MTW per UL 1063
- WTTC per UL 2277
- AWM 20886
- Attributes:
- UL Oil Res I/II
- 75°C Wet; 90°C Dry
- -40°C Cold Bend; -25°C Cold Impact
- Sunlight Resistant
- Submersible Pump (14 AWG and larger)
- Direct Burial
- NFPA 79 2012
- CSA Approval:
- c(UL) CIC/TC FT4
- CSA AWM I/II A/B FT4
- CE Approved
- RoHS Compliant
- MSHA-P-07KA050013-MSHA
