M16878/12 — Type KK (NEMA HP 4 Type KK)

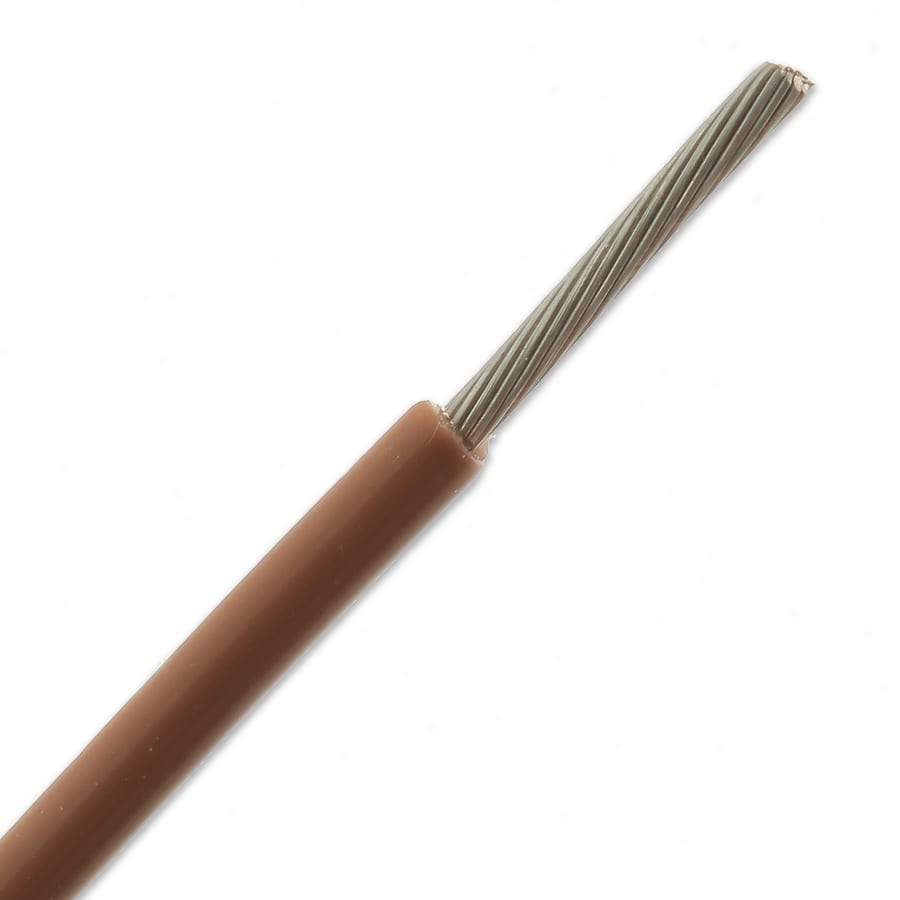

Our M16878/12 Type KK hook-up wire may be used in electronic equipment, computer back panels, ovens, drying rooms, and motor leads. It is constructed with a stranded silver-plated copper conductor and with extruded FEP insulation. The M16878/12 has a temperature range of -55°C to +200°C and a voltage rating of 1000V.
24 items
-
M16878/12BEB$0.00 / 1000 FT
- Approx LBS/MFT: 3.12
- AWG Size: 24
- Cond. Material: Silver-Plated Copper
-
M16878/12BEE$0.00 / 1000 FT
- Approx LBS/MFT: 0.00
- AWG Size: 24
- Cond. Material: Silver-Plated Copper
-
M16878/12BFB$0.00 / 1000 FT
- Approx LBS/MFT: 4.18
- AWG Size: 22
- Cond. Material: Silver-Plated Copper
-
M16878/12BFE$0.00 / 1000 FT
- Approx LBS/MFT: 4.43
- AWG Size: 22
- Cond. Material: Silver-Plated Copper
-
M16878/12BGB$0.00 / 1000 FT
- Approx LBS/MFT: 5.83
- AWG Size: 20
- Cond. Material: Silver-Plated Copper
-
M16878/12BGE$0.00 / 1000 FT
- Approx LBS/MFT: 0.00, 6.1
- AWG Size: 20
- Cond. Material: Silver-Plated Copper
-
M16878/12BHB$0.00 / 1000 FT
- Approx LBS/MFT: 8.33
- AWG Size: 18
- Cond. Material: Silver-Plated Copper
-
M16878/12BHE$0.00 / 1000 FT
- Approx LBS/MFT: 8.52
- AWG Size: 18
- Cond. Material: Silver-Plated Copper
M16878/12 Mil-Spec Hook-Up Wire Specifications
M16878/12 Construction:
- Conductor: Silver-Plated Copper
- Insulation: Extruded FEP
M16878/12 Ratings and Approvals:
- Temperature Range:-55°C to +200°C
- Voltage Rating: 1000 Volts
- Passes UL VW-1 Flame Test
