M16878/12 — Type KK (NEMA HP 4 Type KK)

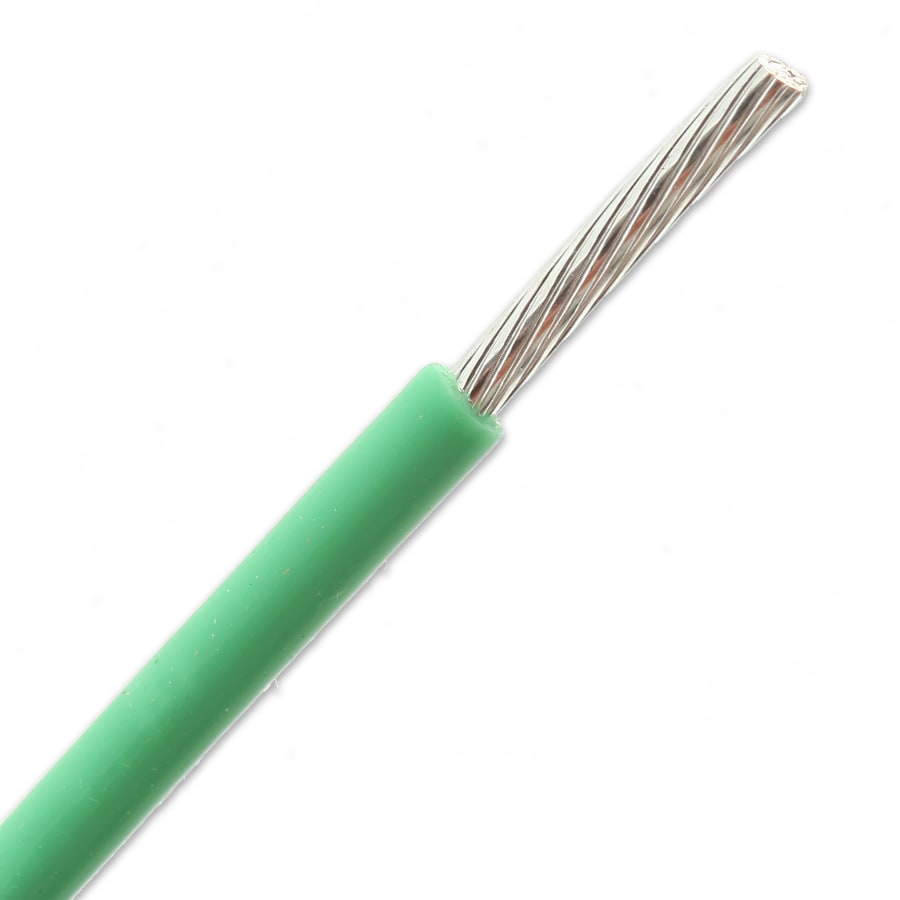

Our M16878/12 Type KK hook-up wire may be used in electronic equipment, computer back panels, ovens, drying rooms, and motor leads. It is constructed with a stranded silver-plated copper conductor and with extruded FEP insulation. The M16878/12 has a temperature range of -55°C to +200°C and a voltage rating of 1000V.
24 items
-
M16878/12BJE$0.00 / 1000 FT
- Approx LBS/MFT: 10.95
- AWG Size: 16
- Cond. Material: Silver-Plated Copper
-
M16878/12BKE$0.00 / 1000 FT
- Approx LBS/MFT: 16.27
- AWG Size: 14
- Cond. Material: Silver-Plated Copper
-
M16878/12BLE$0.00 / 1000 FT
- Approx LBS/MFT: 24.71
- AWG Size: 12
- Cond. Material: Silver-Plated Copper
-
M16878/12BMG$0.00 / 1000 FT
- Approx LBS/MFT: 36.68
- AWG Size: 10
- Cond. Material: Silver-Plated Copper
-
M16878/12BNL$0.00 / 1000 FT
- Approx LBS/MFT: 63.10
- AWG Size: 8
- Cond. Material: Silver-Plated Copper
-
M16878/12BPL$0.00 / 1000 FT
- Approx LBS/MFT: 115, 115.00
- AWG Size: 6
- Cond. Material: Silver-Plated Copper
-
M16878/12BRL$0.00 / 1000 FT
- Approx LBS/MFT: 175, 175.00
- AWG Size: 4
- Cond. Material: Silver-Plated Copper
-
M16878/12BSP$0.00 / 1000 FT
- Approx LBS/MFT: 252, 252.00
- AWG Size: 2
- Cond. Material: Silver-Plated Copper
M16878/12 Mil-Spec Hook-Up Wire Specifications
M16878/12 Construction:
- Conductor: Silver-Plated Copper
- Insulation: Extruded FEP
M16878/12 Ratings and Approvals:
- Temperature Range:-55°C to +200°C
- Voltage Rating: 1000 Volts
- Passes UL VW-1 Flame Test
