MIL-DTL-24643/48 (LSDNW, LSDNWA)

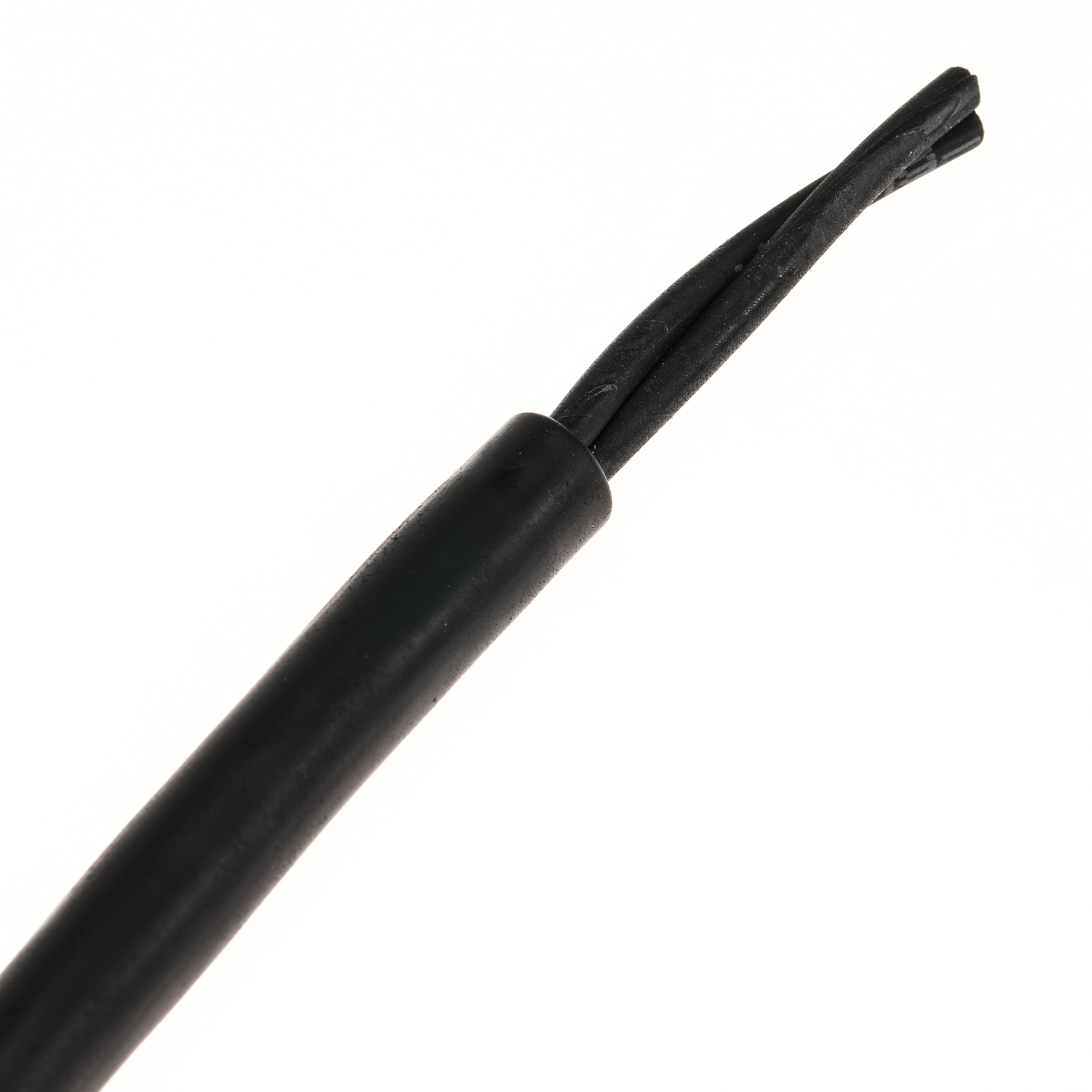

The M24643/48 cable is a low-smoke, zero-halogen shipboard cable. It is suitable for non-watertight, non-flexing services. This Mil-Spec cable features stranded bare copper conductors, Cross-Linked Polyethylene (XLPE) insulation, and an LSZH cross-linked Polyolefin (XLPO) jacket. An armored version is also available. This cable is ideal for use in shipboard combat systems, interior communications, and lighting and power applications that do not exceed 1000V. However, this cable shouldn't be used where a watertight deck or bulkhead below flooding water level II (FWL-II) is penetrated. The Mil-DTL-24643 Mil-Spec covers cables suitable for use in shipboard, communications, instrumentation, and electronic applications.
16 items
-
-
LSDNWA-3$0.00 / 1000 FT
- Ampacity (50C): 12
- Approx LBS/MFT: 0.00
- Armor Material: Aluminum Braid
-
-
LSDNWA-4$0.00 / 1000 FT
- Ampacity (50C): 20
- Approx LBS/MFT: 0.00
- Armor Material: Aluminum Braid
-
-
LSDNWA-9$0.00 / 1000 FT
- Ampacity (50C): 41
- Approx LBS/MFT: 0.00
- Armor Material: Aluminum Braid
-
-
MIL-C-24643/48 (LSDNW, LSDNWA) Mil-Spec Shipboard Cable Specifications
M24643/48 Construction:
- Conductor: Stranded Bare Copper
- 6 AWG thru 7 AWG: Class B stranding per ASTM B3
- 3 AWG thru 1 AWG: Class C stranding per ASTM B8
- 1/0 AWG: Class D stranding per ASTM B8
- Insulation: Cross-Linked Polyethylene (XLPE)
- Jacket: Black or White Low-Smoke, Zero-Halogen (LSZH) Cross-Linked Polyolefin (XLPO) with surface markings
- Armor (LSDNWA): Braided aluminum
M24643/48 Ratings and Approvals:
- Mil-Spec:
- MIL-DTL-24643
- MIL-I-45208A
- MIL-STD-790
- Navy Shipboard Spec:
- LSDNWA (armored)
- LSDNW (unarmored)
- Voltage Rating: 1000V
M24643/48 Features and Benefits:
- Non-watertight for mission-critical environments.
- Thermoset system for advanced mechanical fortification.
- LSZH system maintains circuit integrity due to minimal smoke generation, acid gas, and toxicity.
